These are instructions for assembly of ONE display unit. There are FOUR included in the box.
Captions for each image are BELOW the image.
Find 2 top brackets and 1 top bar. Assemble with 2 thumb screws.
insert bar into hole in bracket and secure with thumbscrew (do not use pliers)
Align brackets by resting the assembly on the floor
Next, find the pieces for the shelf.
Press fit the shelf brackets onto the shelf body and insert the book rest bar (push thru from the inside just enough so you can tuck it into the opposing bracket)

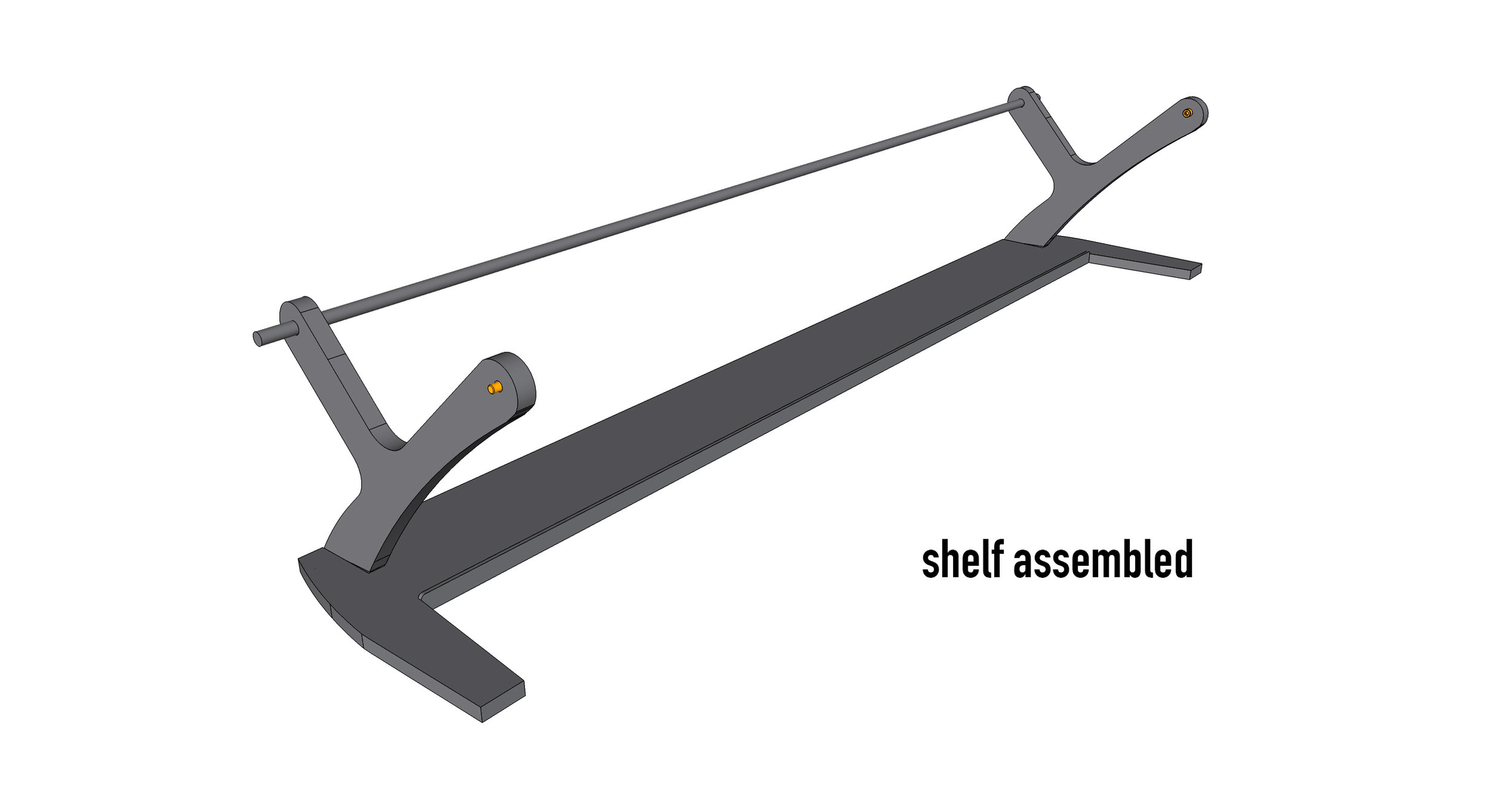

Assembled shelf should look like this. (pre-setting the thumbscrews can be helpful)

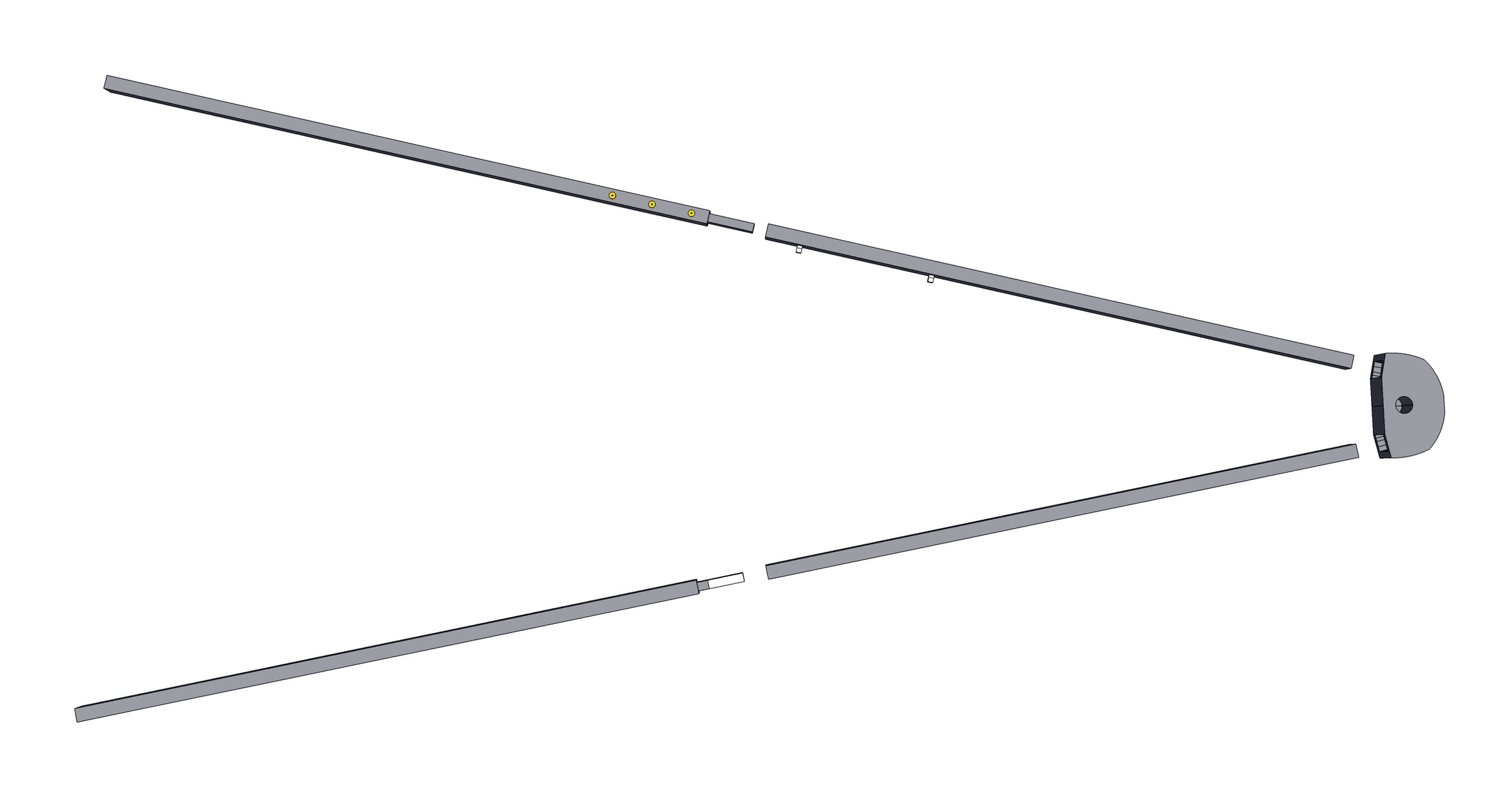

Find 2 of each leg part (only one of each illustrated)
upper legs have capped ends (these slide into the top brackets)
The leg joints fit as above.
If you encounter strong resistance, try using another of the same part. They are made by hand and have slight variations. Try NOT to force fit sections.

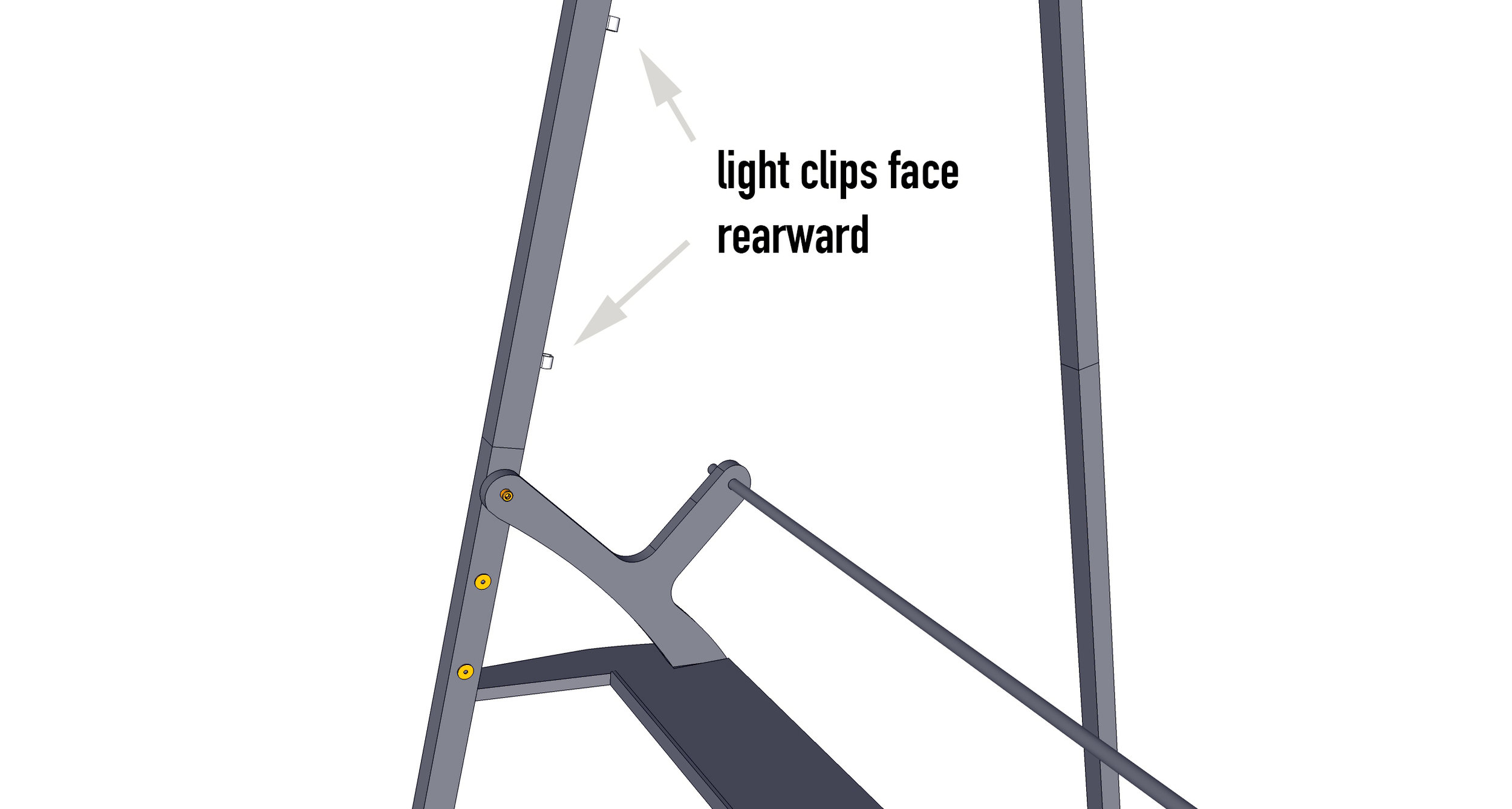

*Important: For each stand, the front legs will mirror each other so the light clips face rearward and the threaded inserts face each other.
Leg and bracket orientation. In this case the front of the stand would be facing up.
I recommend laying the assembled top section on the ground and inserting the legs into the top section starting with the ones closest to the ground.
Once all four legs are in place you can carefully tilt the entire structure to its feet.
Screw the shelf in place using the thumb screws and pick an insert that matches the desired height.
Gravity will hold the shelf in place as it pivots toward the leg.

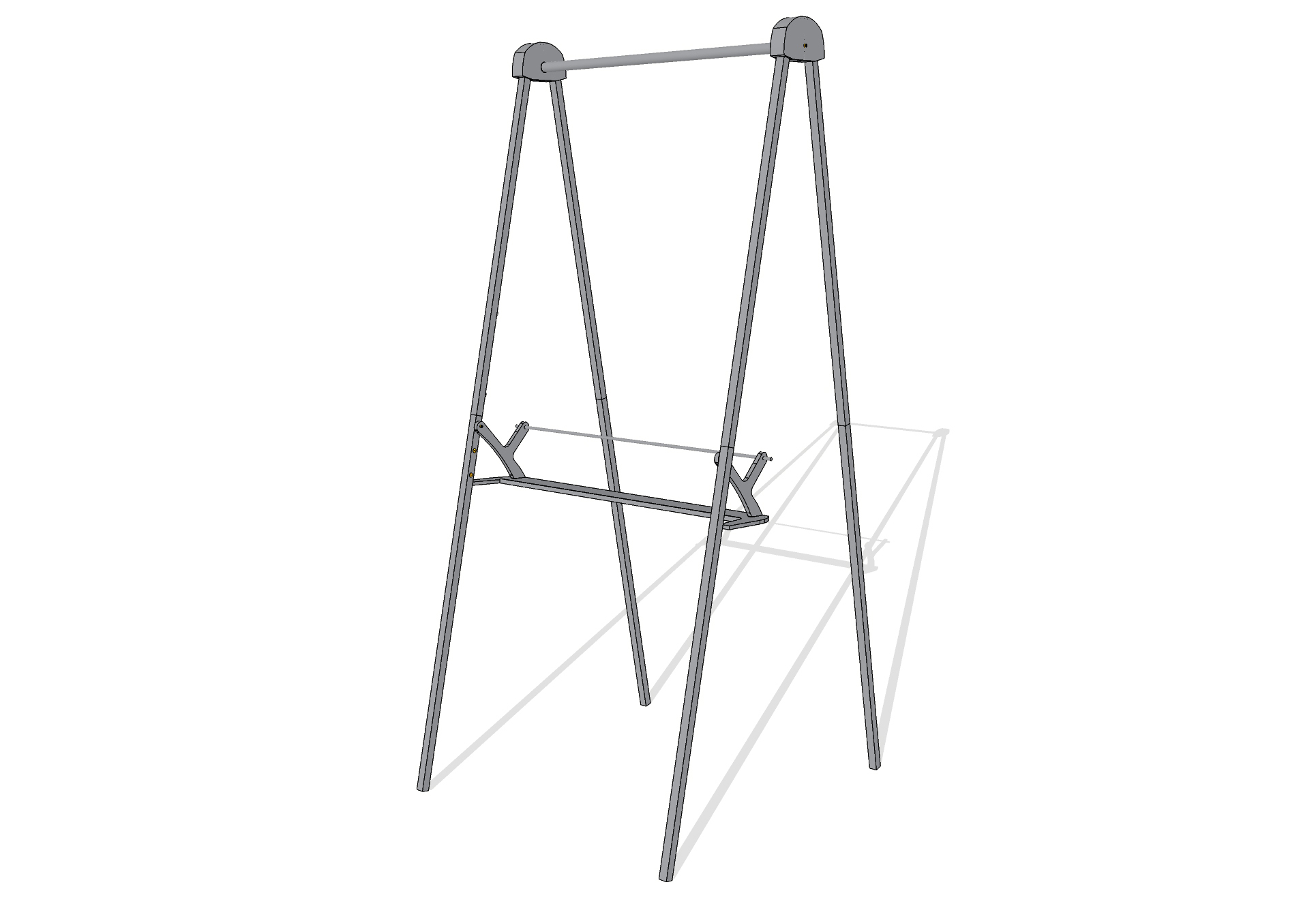

Fully assembled. Legs can be adjusted (gently outward) to achieve best stability.
Reverse order of assembly to dismantle.
