La Llorona: A kinetic/sonic memorial
Documentation of the progress of our project. I'll keep it updated as we go.
BELLOWS AND FLUTE CONSTRUCTION
View fullsize

Cutting out cardboard from old record jackets for the bellows
View fullsize

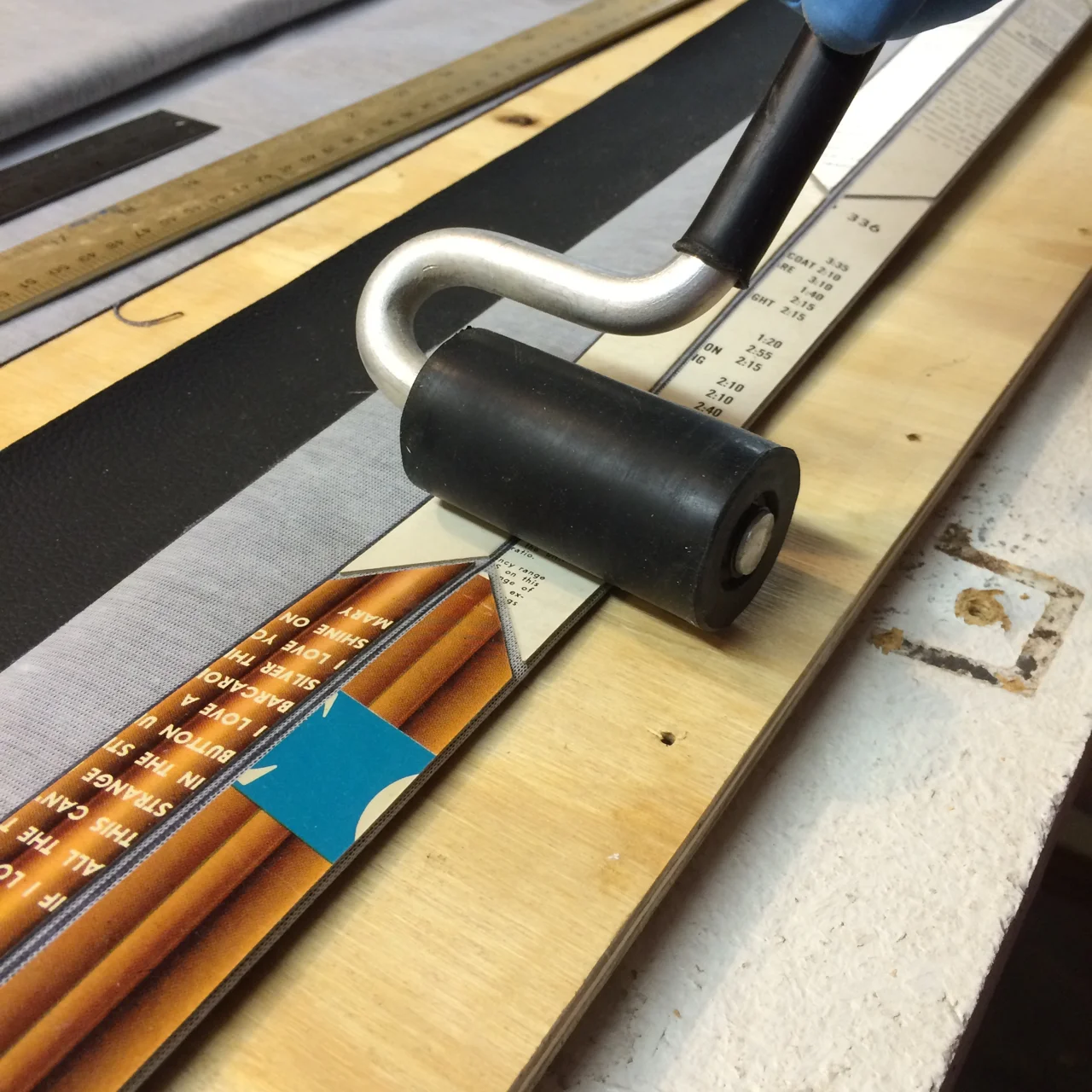

Gluing stiffeners down to vinyl for bellows
View fullsize

Forming the folds for the first time
View fullsize

Taking shape
View fullsize

Wooden sides temporarily attached
View fullsize

Air box for bellows
View fullsize

Bellows ready to install
View fullsize

Installed on air box - collapsed
View fullsize

Installed on air box - extended
View fullsize

Beginnings of flute prototype
View fullsize

Cutting the flute body to the right size
View fullsize

The little diverter that directs the air to the beveled edge
View fullsize

The cap goes into place
View fullsize

Ready to make sound (see video)
View fullsize

The air input (these couplings are too small for the best sound)
View fullsize

Flute when fully assembled
View fullsize

Bellows connected to flute
DESIGN ITERATIONS
View fullsize

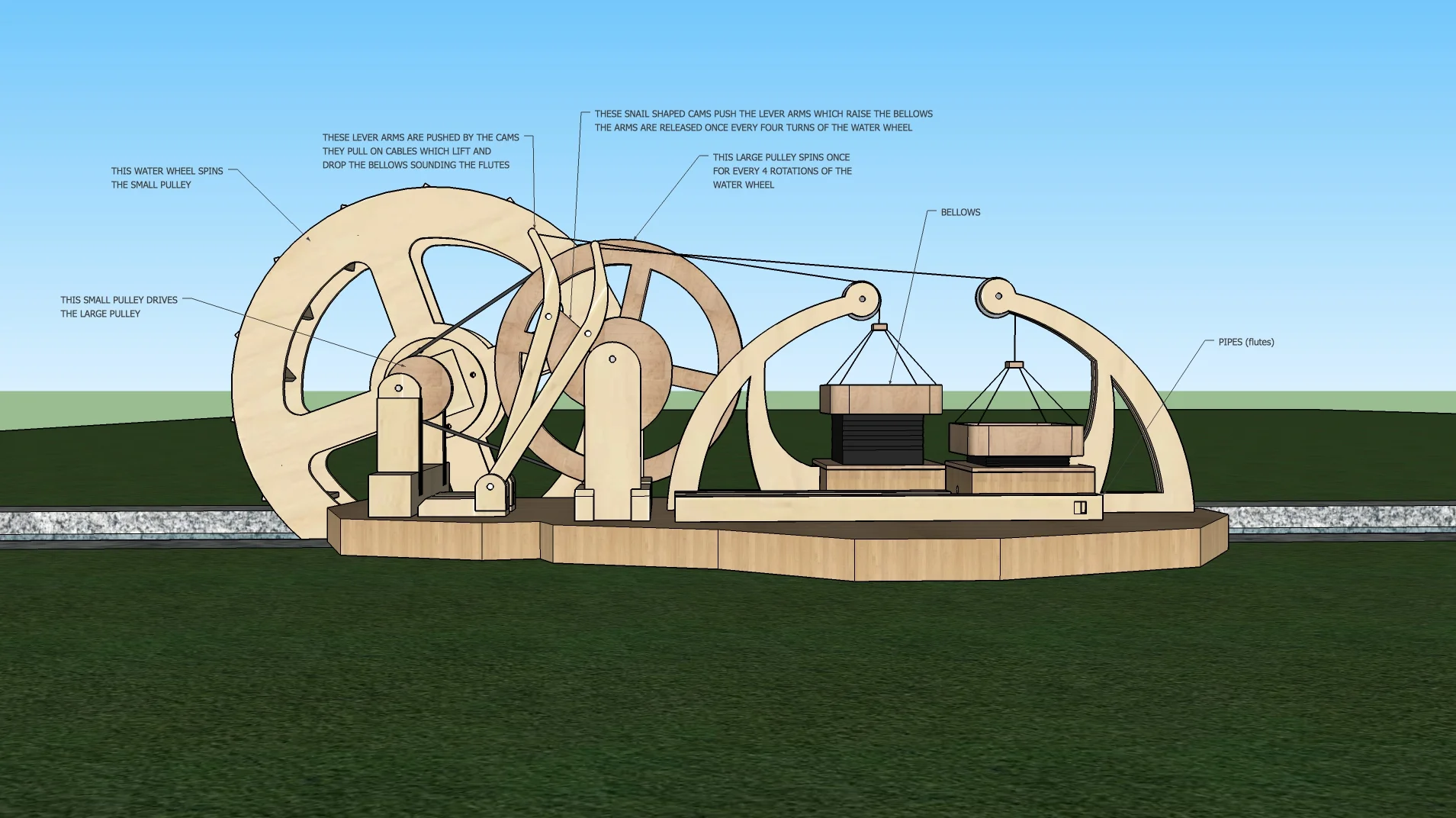

Annotated redesign
View fullsize

Plan view (overhead)
View fullsize

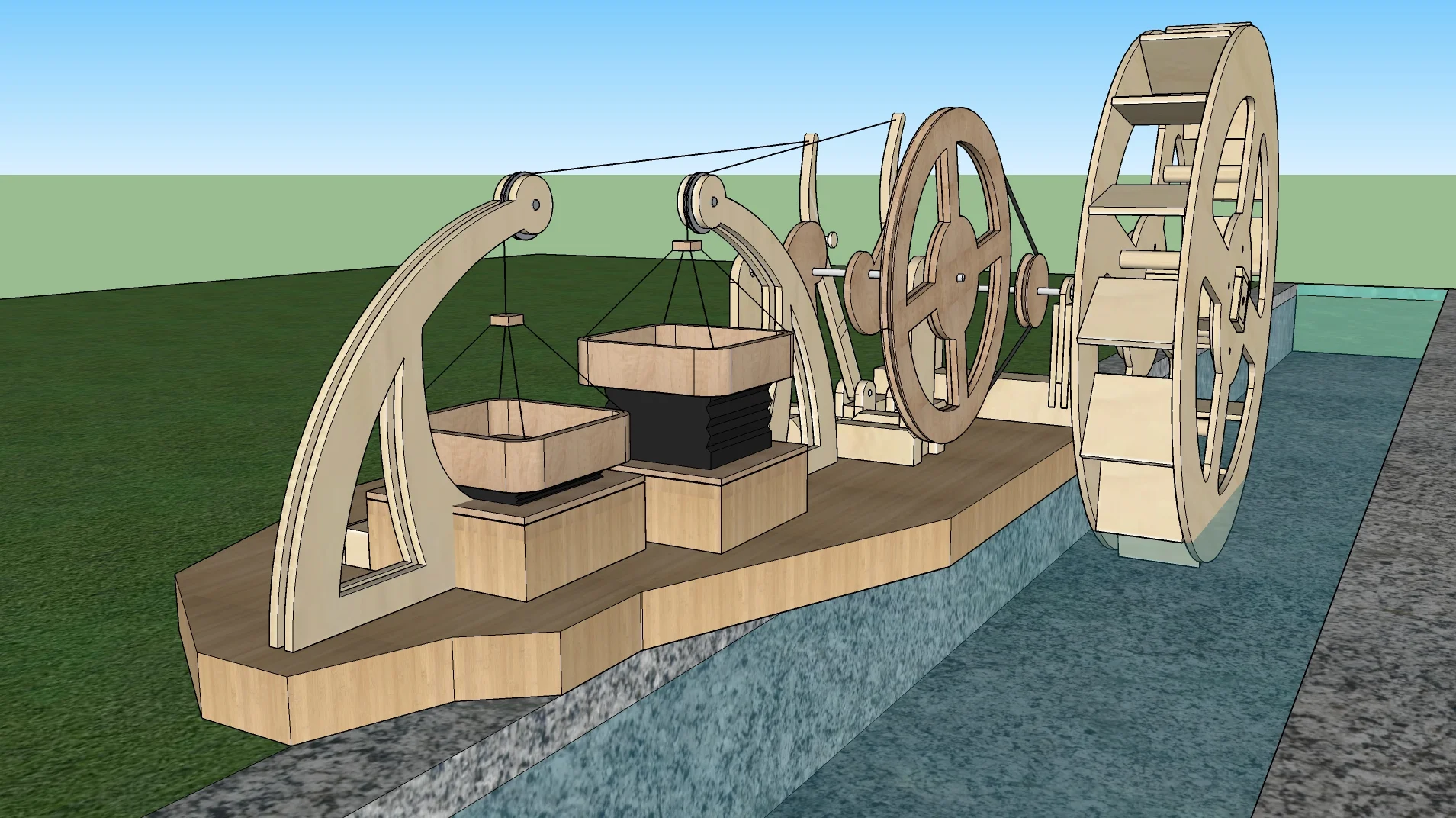

From the bellows side
View fullsize

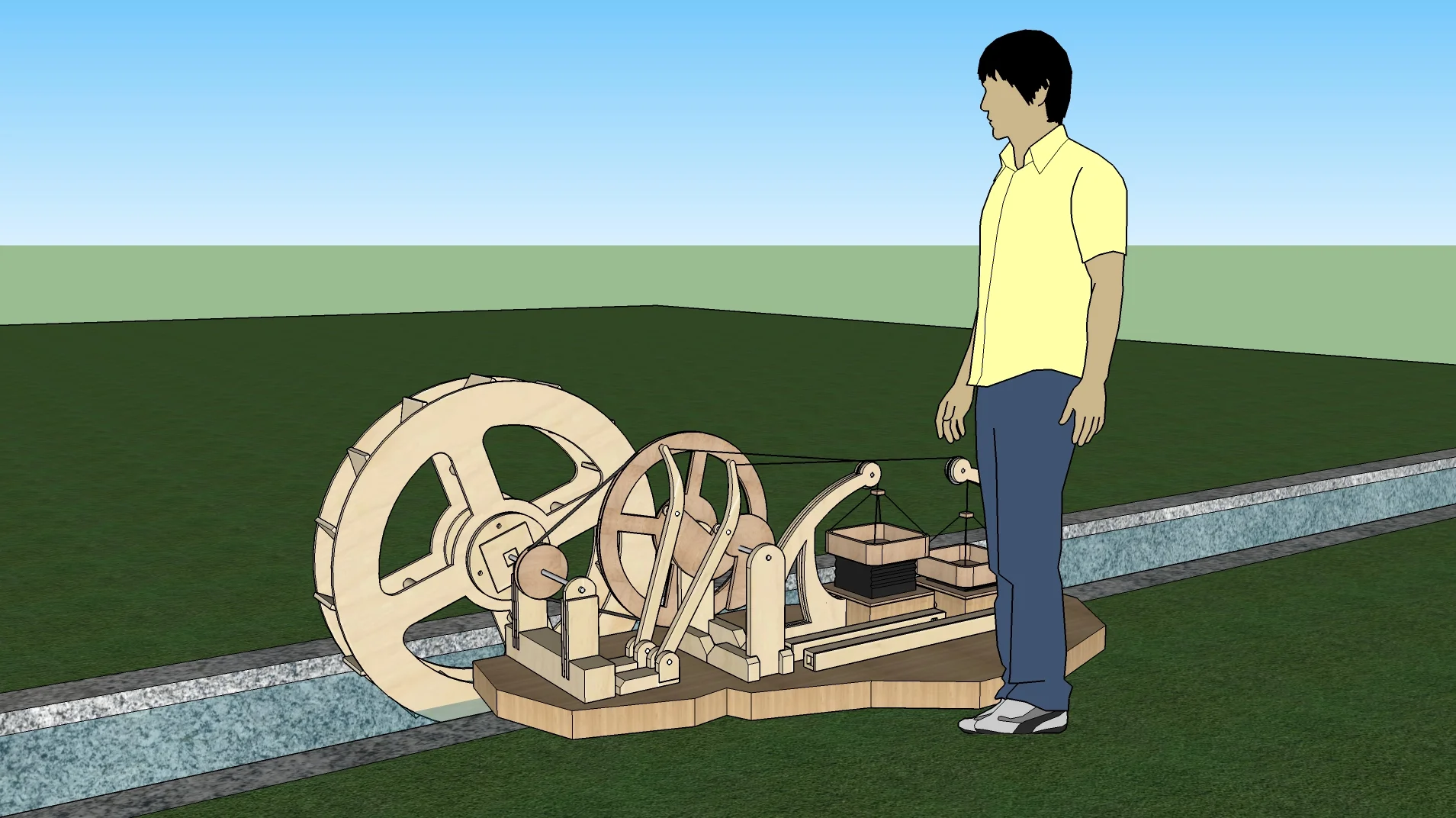

With figure for scale
View fullsize

With figure for scale
View fullsize

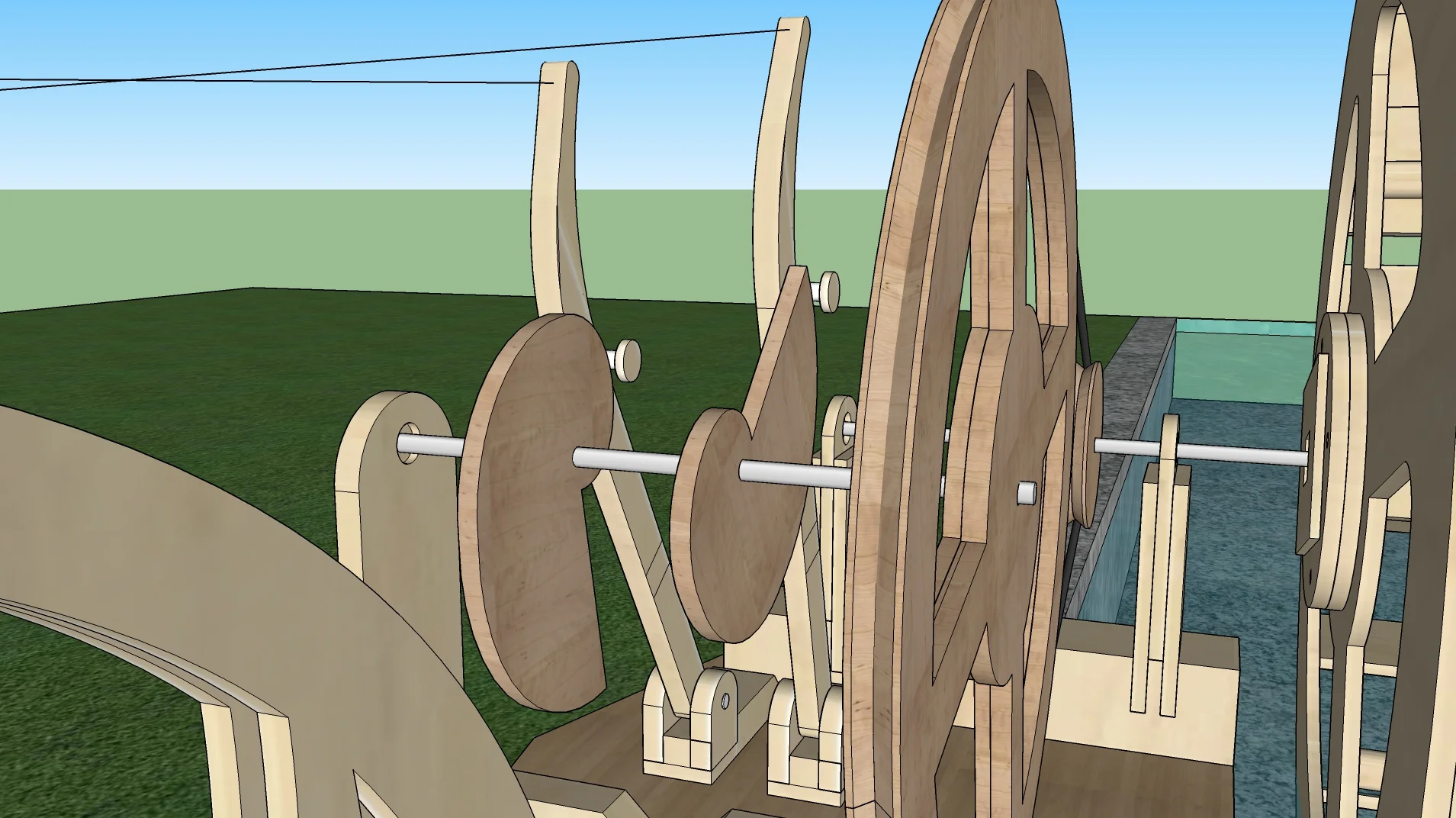

Cam and lever arm detail
View fullsize

Waterwheel and pulleys 4:1 gear reduction
View fullsize

Waterwheel design refined
View fullsize

Hub design refined for strength
View fullsize
Sketches for hub redesign
View fullsize
Bellows and air box sketch
WATERWHEEL AND OTHER MECHANISMS
View fullsize

Flush mounting bearings for the 1/2" shaft
View fullsize

Prototype blocks to secure bearings
View fullsize

prototype base for waterwheel with bearings and shaft in place
View fullsize

lapped joints for strength in a prototype section - this type of plywood was only used in tests
View fullsize

Prototype waterwheel hub in place
View fullsize

first waterwheel hub iteration
View fullsize

large pulley prototype
View fullsize

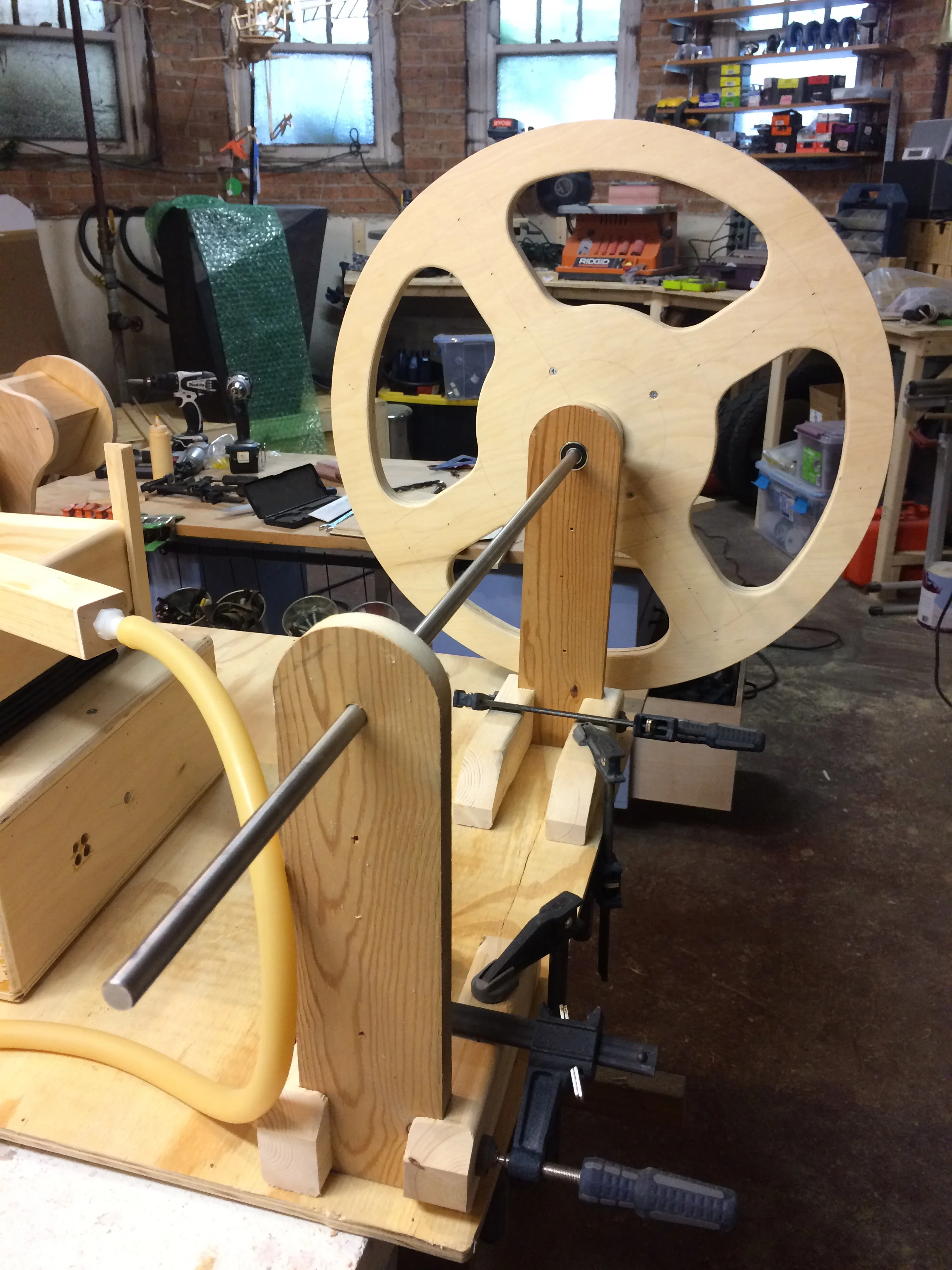

pulley prototype mounted
View fullsize

testing spacial relationships
View fullsize

movement at last - connected pulleys with belt drive
View fullsize

bellows pulley arm
View fullsize

bellows pulley arm
View fullsize

space for pulley in bellows arm
View fullsize

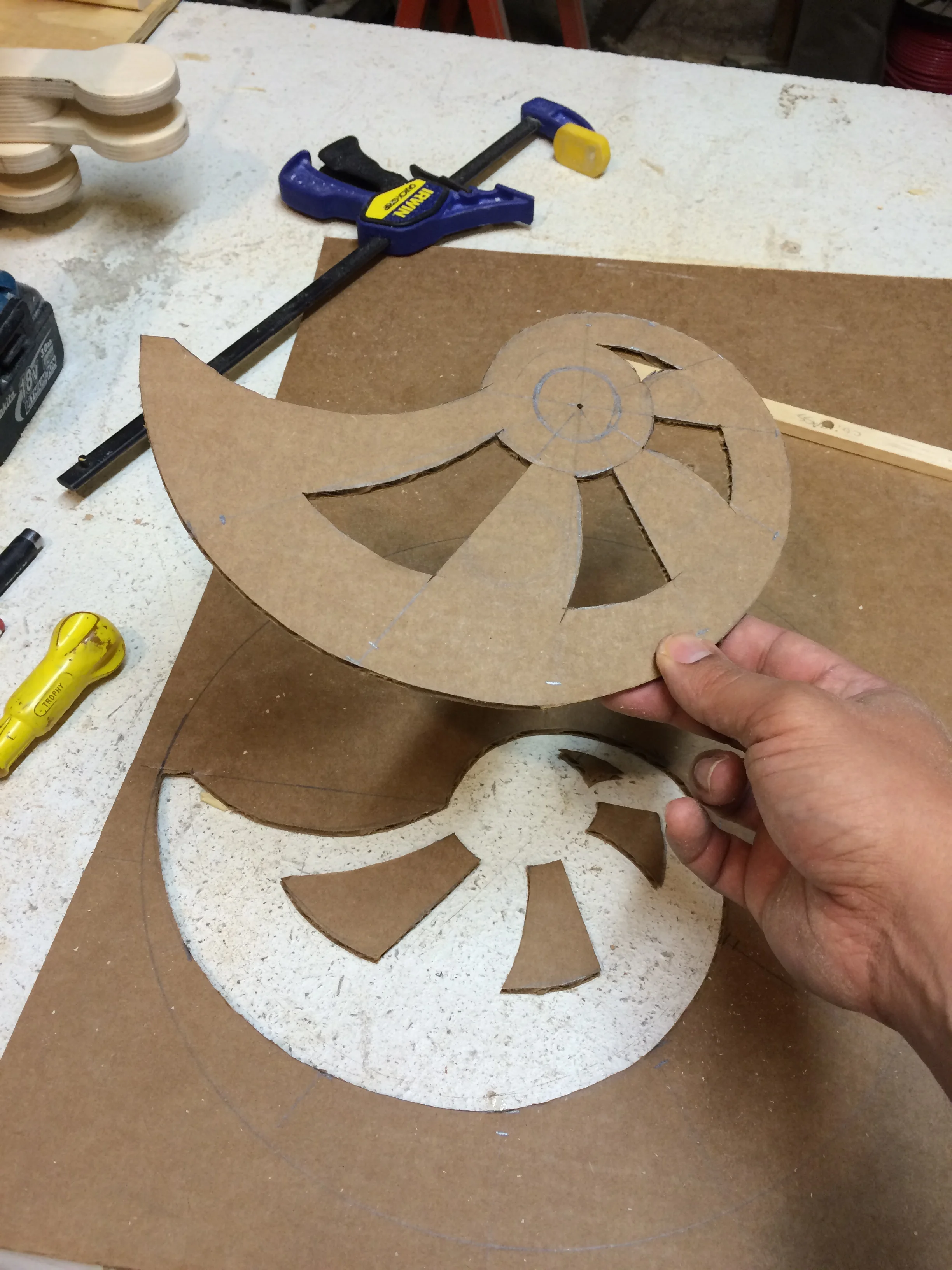

snail cam design template in cardboard
View fullsize

finished 3/4" snail cam
View fullsize

snail cams in place
View fullsize

designing lantern gear to slow movement
View fullsize

testing tooth spacing of lantern gear
View fullsize

large lantern gear in progress
View fullsize

large lantern gear assembled
View fullsize

two lantern gears waiting for glue to dry
View fullsize

lantern gears in place with large pulley
View fullsize

testing movement and placement
View fullsize

stand for main pulley
View fullsize

lantern gear in action
View fullsize

progress!
View fullsize

lever arms built and in position
View fullsize

roller bearings on lever arms
View fullsize

new waterwheel stand with old one in back
View fullsize

groove (or dado) routed
View fullsize

new main pulley from baltic birch plywood
View fullsize

starting on the waterwheel!
View fullsize

routing jig in place
View fullsize

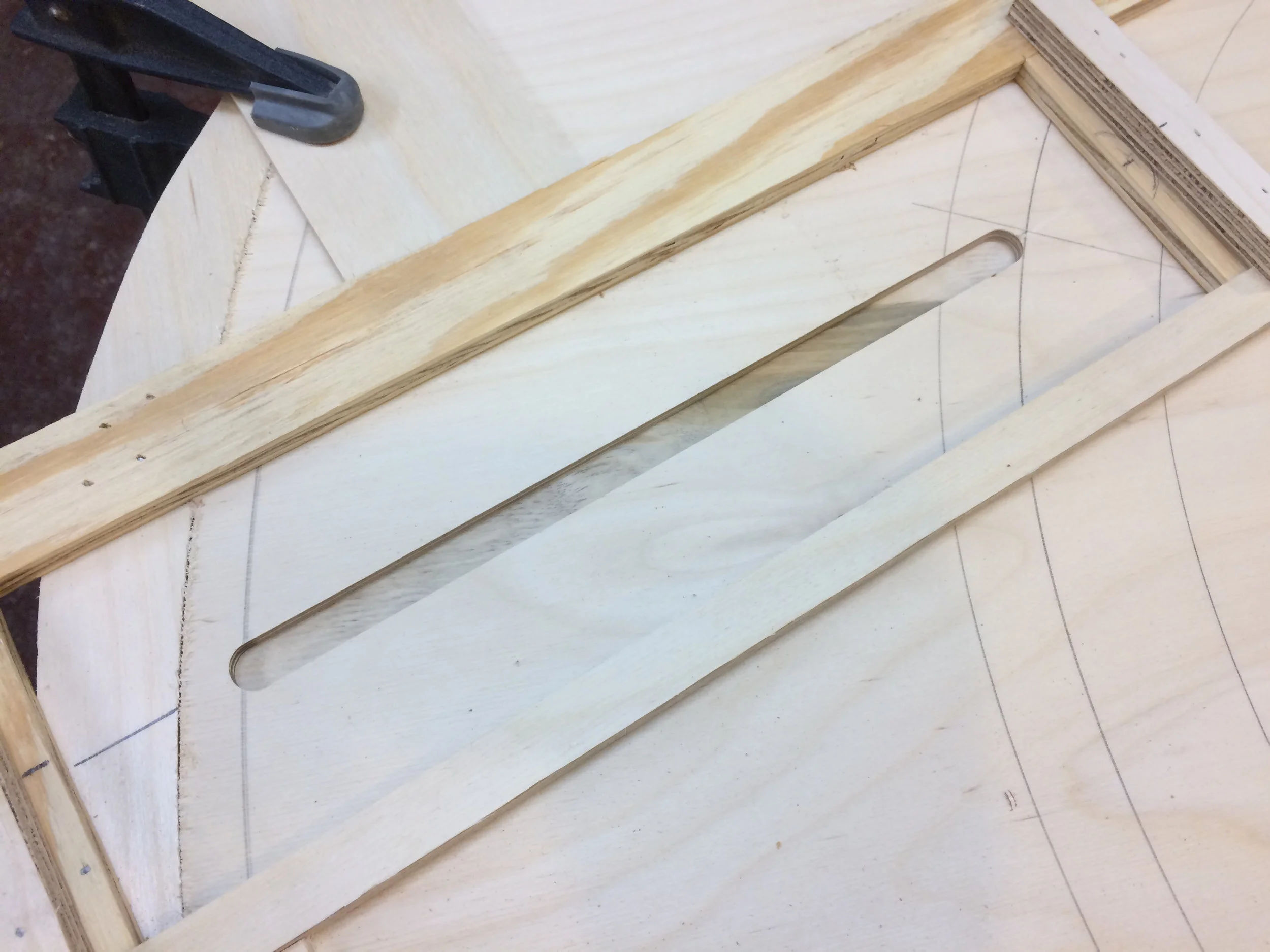

a jig to help route grooves at an angle
View fullsize

progress on the wheel
View fullsize

fin on wheel and corresponding dado
View fullsize

using hand tools to square off round dado ends
View fullsize

the jig reversed on the other side of the waterwheel
View fullsize

once side of the wheel in place just to see
View fullsize

routed with center shapes cut
View fullsize

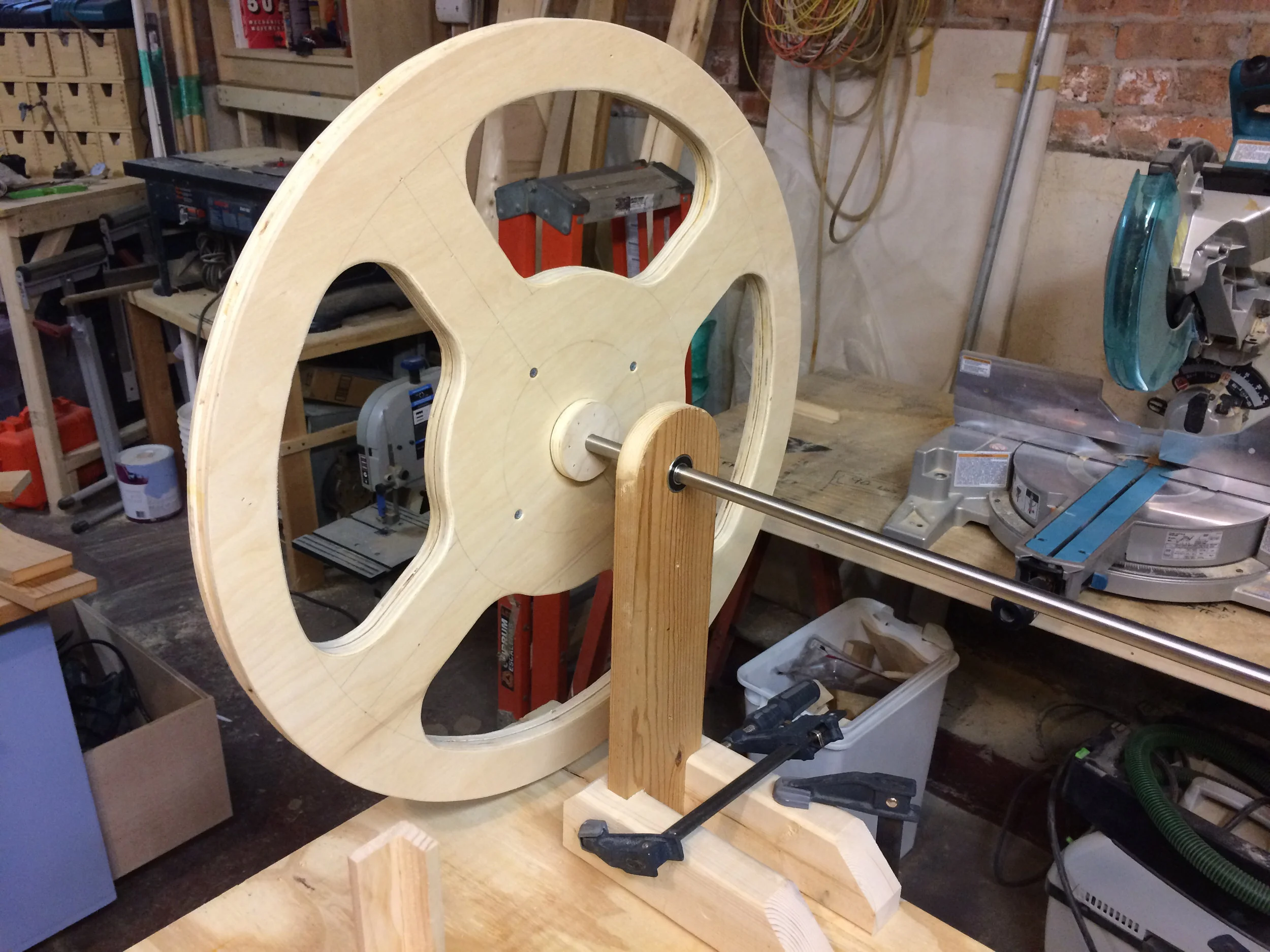

mounted on the hub to check alignment
View fullsize

a closer look
View fullsize

the wheel mounts with 4 bolts
View fullsize

testing the fit
View fullsize

looking too solid/heavy
View fullsize

cutting spillways for the water which lighten the wheel
View fullsize

completed wheel sides
View fullsize

the floor after an afternoon of work
View fullsize

the wheel mounted before the black fasteners were removed
View fullsize

another view
View fullsize

with the black fasteners replaced by wooden dowels - a clean look
View fullsize

the waterwheel complete
View fullsize

building another hub for a 3/4" shaft to handle the weight of the wheel
